　 Swissbitとは…？ まずは動画で確認

    　 Swissbit製品の仕様（一例）

    ※詳細はカタログをダウンロードください

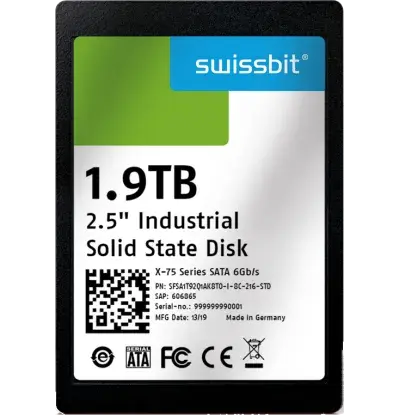

    sata-ssd-x-75-1920gb-swissbit-cc093392



    Series Name

    X-600

    X-60 / X-66

    X-75 P

    		 X-73 / X-76

    Standard & Interface

    		 SATA Gen 3 – 6 Gbit/s
    ATA8

    Package

    SATA 2.5" SSD

    Connector

    15 + 7 pin Serial ATA

    Outline Dimensions

    100 x 70 x 7 mm

    Flash Type

    SLC

    MLC / pSLC

    3D NAND TLC

    		 3D NAND TLC / pSLC

    Density Range

    8-256 GB

    X-60: 30-960 GB
    X-66: 16-480 GB

    60-1,920 GB

    X-73: 30-1,920 GB
    X-76: 10-320 GB

    Data Retention

    10 years @ life begin
    1 year @ life end

    Endurance [DWPD]

    36.3

    15.1 / 2.3

    max 1.2 / 1.2

    max 1.2 / 22.7

    Operating Temperature

    Commercial: 0°C to +70°C
    Industrial: -40°C to +85°C

    Storage Temperature

    -40°C to + 85°C

    Performance

    Sequential Read (MB/s)
    Sequential Write (MB/s)
    Random 4KB Read (IOPS)
    Random 4KB Write (IOPS)



    up to 520
    up to 425
    up to 79,000
    up to 76,000



    up to 525 / 520
    up to 460 / 450
    up to 74,300 / 80,000
    up to 77,900 / 75,000



    up to 560
    up to 500
    up to 77,700
    up to 73,600



    up to 565 / 560
    up to 500 / 480
    up to 77,200 / 74,000
    up to 79,400 / 84,900

    MTBF

    ≥ 2,000,000 hours

    Shock

    1,500G, 0.5 ms

    Vibration

    50 G, 80-2,000 Hz

    Humidity

    85 % RH 85°C, 1,000 hrs

    Voltage

    5 V ± 10 % / 3.3 V ± 5 %

    5 V ± 10 %

    Features & Tools

    		 FW based Power Fail Safety
    NCQ, TRIM
    AES 256 Encryption optional
    SBDM Tool & SDK for S.M.A.R.T.
    based Life Time Monitoring

    Powersafe™
    HW Power Fail Protection

    FW based Power Fail Safety
    E2E Data Protection
    AES 256 Encryption optional
    TCG OPAL optional
    SBDM Tool & SDK for detailed S.M.A.R.T. based Life Time Monitoring

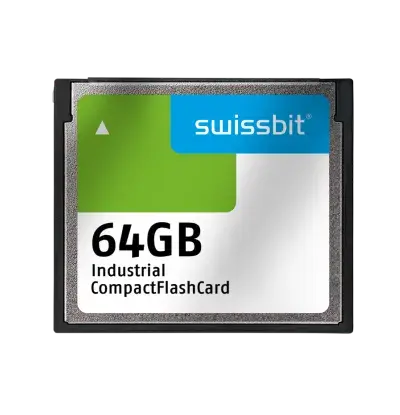

    industrial-compactflash-card-64gb-swissbit-ab799628

    Series Name

    C-350

    C-300L

    C-500

    C-56

    Interface

    CFA4.1

    CFA5.0 / CFA6.1 compatible

    Interface
    Data Transfer Mode

    True IDE / PC card – Up to
    UDMA4, MDMA4 & PIO6

    True IDE / PC card – Up to
    UDMA6, MDMA4 & PIO6

    Connector

    CFC Type I

    Outline Dimensions

    36.4 x 42.8 x 3.3 mm

    Flash Type

    SLC

    pSLC

    Density Range

    32-256 MB

    128 MB-1 GB

    512 MB-64 GB

    4-64 GB

    Data Retention

    10 years @ life begin
    1 year @ life end

    Endurance [DWPD]

    JESD219 Client Endurance Workload

    max 3.4



    max 3.50

    max 1.35

    Operating Temperature

    Commercial: 0°C to +70°C
    Industrial: -40°C to +85°C

    Storage Temperature

    -40°C to +85°C

    Performance

    Sequential Read (MB/s)

    Sequential Write (MB/s)

    Random 4KB Read (IOPS)

    Random 4KB Write (IOPS)



    up to 22
    up to 10
    up to 3,000
    up to 50



    up to 22
    up to 10
    up to 3,000
    up to 50



    up to 64
    up to 44
    up to 3,200
    up to 1,900



    up to 115
    up to 66
    up to 5,000
    up to 3,300

    MTBF

    ≥ 3,000,000 hours

    Shock

    1,500 G

    Vibration

    20 G

    Humidity

    85 % RH 85°C, 1,000 hrs

    Voltage

    3.3 V ± 10 %
    5 V ± 10 %

    Features & Tools

    		 Proven Power Fail Safety
    Security & SBZoneProtection features
    available
    SBDM Tool & SDK for S.M.A.R.T. based Life
    Time Monitoring    		 Page based FTL for maximum Endurance
    Proven Power Fail Safety
    Read Disturb Management
    TRIM
    Security & SBZoneProtection features available
    SBDM Tool & SDK for S.M.A.R.T.
    based Life Time Monitoring

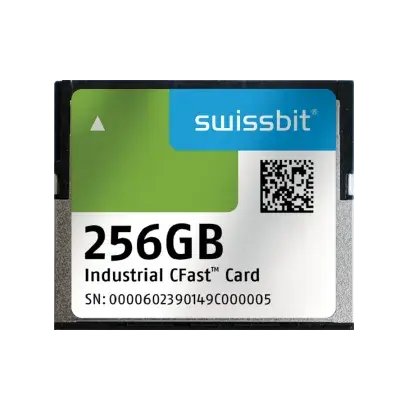

    cfast-card-industrial-256gb-swissbit-a5cd242f

    Series Name

    		 F-800 F-86 F-75 F-600 F-50 / F-56

    Interface
    Data Transfer Mode

    CFast™ 2.0 – SATA Gen 3
    6 Gbit/s ATA8

    Connector

    		 CFast™ Type I

    Outline Dimensions

    		 36.4 x 42.8 x 3.6 mm

    Flash Type

    		 SLC 3D pSLC 3D TLC SLC MLC / pSLC

    Density Range

    		 2-64 GB 10-160 GB 32-256 GB 8-64 GB F-50: 8-256 GB
    F-56: 4-128 GB

    Data Retention

    		 10 years @ life begin
    1 year @ life end

    Endurance [DWPD]
    JESD219 Client Endurance Workload

    		 max 32 max 13.3 max 1.79 36.3 max 1.50 / 7.98

    Operating Temperature

    		 Commercial: 0°C to +70°C
    Industrial: -40°C to +85°C

    Storage Temperature

    		 -40°C to +100°C

    Performance

    Sequential Read (MB/s)
    Sequential Write (MB/s)
    Random 4KB Read (IOPS)
    Random 4KB Write (IOPS)



    up to 320
    up to 170
    up to 10.5k
    up to 7.1k



    up to 372
    up to 223
    up to 13.1k
    up to 8.3k



    up to 550
    up to 172
    up to 53.6k
    up to 39.5k



    up to 520
    up to 245
    up to 76k
    up to 54k



    up to 500 / 510
    up to 330 / 415
    up to 53.5k / 32k
    up to 74k   / 66k

    MTBF

    		 ≥ 2,000,000 hours

    Shock

    		 500 G, 0.5 ms duration,
    half-sine wave    		 1,500 G, 0.5 ms duration,
    half-sine wave    		 500 G, 1 ms duration,
    half-sine wave

    Vibration

    		 20 G, 80-2,000 Hz 50 G, 80-2,000 Hz 20 G, 80-2,000 Hz

    Humidity

    		 85 % RH 85°C, 1,000 hrs

    Voltage

    		 3.3 V ± 5 %

    Features & Tools

    DRAM-Less
    E2E Data Path Protection
    NCQ, TRIM
    Advanced Wear Leveling & Bad Block management
    In-field firmware update
    SBDM Tool & SDK for S.M.A.R.T. based Life Time Monitoring
    AES 256 Encryption (optional)

    Proven Power Fail Safety
    DRAM supported FTL
    NCQ, TRIM
    Advanced Wear Leveling & Bad Block management
    In-field firmware update
    SBDM Tool & SDK for S.M.A.R.T. based Life Time Monitoring
    F-6x: AES 256 Encryption (optional)
    F-75: AES 256 & TCG Opal 2.0

    DRAM-Less
    Proven Power Fail Safety
    NCQ, TRIM
    Advanced Wear Leveling & Bad Block management
    In-field firmware update
    SBDM Tool & SDK for S.M.A.R.T. based Life Time Monitoring

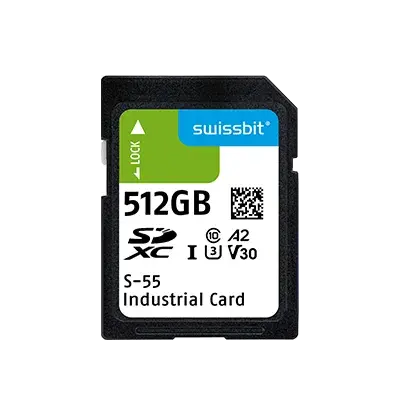

    S-55_512GB-60e146e5

    Series Name

    S-600

    S-52

    S-50 / S-55

    S-56 / S-58

    Interface
    Data Transfer Mode

    SD 3.0, UHS-1,
    speed class 10/U1

    SD 6.1, UHS-I, speed class 10/U3/V30/A2
    High endurance type

    SD 6.1, UHS-I,
    speed class 10/U3/V30/A2
    High reliability type

    Connector

    SD

    Outline Dimensions

    32 x 24 x 2.1 mm

    Flash Type

    SLC

    		 3D NAND TLC

    3D NAND TLC

    		 3D NAND pSLC

    Density Range

    512 MB - 32 GB

    32-128 GB

    		 S-50: 16-512 GB
    S-55: 64-512 GB

    S-56:   4-128 GB
    S-58: 16-128 GB

    Data Retention

    10 years @ life begin
    1 year @ life end

    Endurance
    (P/E Cycles)

    100k

    		 3k 3k

    S-56: up to 100k
    S-58: up to 60k

    Operating Temperature

    Extended: -25°C to +85°C
    Industrial: -40°C to +85°C

    Storage Temperature

    -40°C to +100°C

    Performance

    Sequential Read (MB/s)
    Sequential Write (MB/s)
    Random 4KB Read (IOPS)
    Random 4KB Write (IOPS)



    up to 94
    up to 50
    up to 1,200
    up to 1,200



    up to 95
    up to 84
    up to 1,960
    up to 780



    up to 97 / 97
    up to 38 / 60
    up to 3,750 / 1,970
    up to 1,800 / 840



    up to 97 / 97
    up to 90 / 84
    up to 4,950 / 3,950
    up to 1,800 / 1,080

    MTBF

    ≥ 3,000,000 hours

    Shock

    1,500 G

    Vibration

    50 G

    Humidity

    85 % RH 85°C, 1,000 hrs

    Voltage

    2.7 – 3.6 V

    Use Case

    Optimized for high read/write traffic for demanding industrial applications.

    Optimized for seq. write use cases such as video recording, dash/body cams
    Automotive type AEC-100-3

    High reliability type
    Optimized for random write use cases such as industrial data logging

    Features & Tools

    Read Disturb Management, Autonomous Data Care Management
    Real industrial temperature range with full cross temperature support
    Proven FW based Power Fail Safety
    Manufactured in a TS 16949 certified factory
    SBDMTool & SDK for detailed Life Time Monitoring

    Support SD SPI mode
    Proven FW based Power Fail Safety
    Sophisticated Wear Leveling & Bad Block management
    Autonomous Data Care Management
    SBDMTool & SDK for detailed Life Time Monitoring

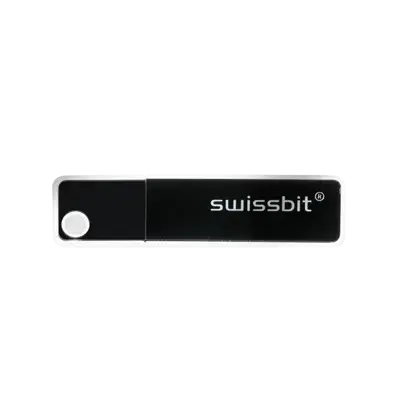

    usb-flash-drive-swissbit-5a032d81

    Series Name

    U-500k

    U-56k

    U-50k

    		 U-56n U-50n

    Interface
    Data Transfer Mode

    USB 3.1
    Super Speed / High / Full

    Connector

    USB 3.0 Type A-Plug

    Outline Dimensions

    67.8 x 18.0 x 8.3 mm

    		 24.0 x 12.1 x 4.5 mm

    Flash Type

    SLC

    pSLC everbit™

    MLC durabit™

    pSLC everbit™

    MLC durabit™

    Density Range

    2-32 GB

    8-64 GB

    16-128 GB

    		 4-32 GB 8-64 GB

    Data Retention

    10 years @ life begin / 1 year @ life end

    Endurance
    [DWPD]
    Seq. Wr

    		 93

    19

    		 2.9

    19

    		 2.9

    Operating Temperature

    Commercial: 0°C to +70°C
    Industrial: -40°C to +85°C

    Storage Temperature

    		 -40°C to +85°C

    Performance

    Sequential Read (MB/s)
    Sequential Write (MB/s)
    Random 4KB Read (IOPS
    Random 4KB Write (IOPS



    up to 180
    up to 100
    up to 3,700
    up to 2,000



    up to 190
    up to 110
    up to 4,000
    up to 3,200



    up to 150
    up to 60
    up to 3,200
    up to 900



    up to 197
    up to 126
    up to 3,850
    up to 2,600



    up to 156
    up to 64
    up to 2,850
    up to 1,800

    MTBF

    ≥ 3,000,000 hours

    Shock

    1,500 G

    Vibration

    50 G

    Humidity

    85 % RH 85°C, 1000 hrs

    Voltage

    5 V ± 10 %

    Features & Tools

    		 Page based FTL for best write performance and endurance
    Proven Power Fail Safety
    Windows / Linux – Spare block read out
    Bootable USB Drive
    Supports latest OS as Removable Drive (USB Flash Drive)
    Shock & vibration resistant

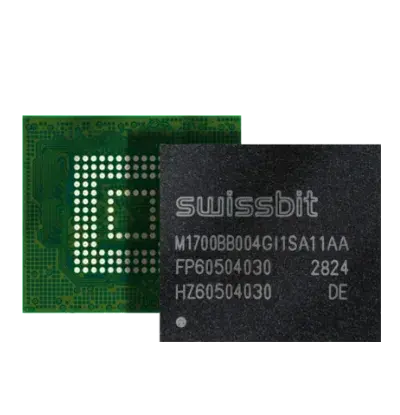

    M1100-eMMC-d66f2a18

    Series Name

    M1700 / M1100

    EM-36 / EM-30

    EM-26 / EM-20

    Compliance

    JEDEC e.MMC 5.1

    JEDEC e.MMC 5.0

    Interface

    Data Transfer Mode

    e.MMC 1-bit, 4-bit, 8-bit up to HS400

    Package

    153-ball BGA, 0.5mm pitch

    153-ball BGA, 0.5mm pitch
    100-ball BGA, 1mm pitch

    153-ball BGA, 0.5mm pitch

    Max Outline Dimensions

    		 11.5 x 13.1 x 1.0 mm 11.5 x 13 x 1.2 mm
    14.0 x 18 x 1.4 mm

    11.5 x 13.0 x 1.0 mm

    Flash Type

    pSLC reliable mode / MLC

    3D pSLC reliable mode / 3D TLC

    pSLC reliable mode / MLC

    Density Range

    4 GB / 8 GB

    5-80 GB / 4-256 GB

    2-32 GB / 4-64 GB

    Data Retention

    10 years @ life begin
    1 year @ life end

    Endurance
    (P/E Cycles)

    3k @ MLC mode
    20k @ enhanced mode

    3k @ TLC mode
    30k @ enhanced mode Gen3 Flash
    100k @ enhanded mode Gen5 Flash

    3k @ MLC mode
    30k @ enhanced mode

    Operating Temperature
    (Ambient)

    Industrial: -40°C to +85°C
    Automotive: -40°C to +105°C

    Industrial: -40°C to +85°C
    Automotive: -40°C to +105°C

    Industrial: -40°C to +85°C

    Storage Temperature

    -40°C to +85°C

    Performance

    Sequential Read (MB/s)
    Sequential Write (MB/s)
    Random 4KB Read (IOPS)
    Random 4KB Write (IOPS)



    up to 240 / 230
    up to 90 / 30
    up to 2,000 / 4,500
    up to 1,600 / 1,200



    up to 330 / 320
    up to 250 / 240
    up to 4,500 / 4,600
    up to 2,900 / 2,900



    up to 240 / 175
    up to 120 / 21
    up to 6,700 / 3,800
    up to 6,700 / 1,400

    Voltage

    VCCQ: 1.70-1.95V / 2.70-3.60V ; VCC: 2.70-3.60

    Features & Tools

    Power-fail data loss protection
    Wear Leveling technology
    Read Disturb Management
    Auto Read Refresh
    Device Health Report
    Field Firmware update 4
    Discard and Sanitize, Trim
    Boot Operation Mode and Alternative Boot Operation Mode
    Replay Protected Memory Block (RPMB)

    High performance up to HS400 mode
    Sophisticated Wear Levelling
    Read Disturb Management
    Command Queue Feature
    Production State Aware
    Proven Power Fail Safety
    Security features – secure erase & RPMB
    Detailled life time info
    AEC-Q Grade 2
    Swissbit is ISO 27001 and IATF 16949 certified

    High performance up to HS400 mode
    Sophisticated Wear Levelling
    Read Disturb Management
    Page based FTL Management
    Production State Aware
    Proven Power Fail Safety
    Security features – secure erase & RPMB
    Detailed block erase counter data via the
    Extended CSD Register

    　 セキュリティ対応の新提案

    swissbit_Logo_cyan_RGB_RZ

    .
